Vertex™ 12V Smart Remote Battery Disconnect Switch Kit

Stop Unwanted Battery Drain—Without Opening the Hood

Small electrical loads can continue draining your vehicle battery while it is parked or stored.

The Vertex™ 12V Smart Remote Battery Disconnect Switch Kit helps you disconnect battery power, monitor voltage and reduce unnecessary battery drain—without repeatedly removing the battery cable by hand.

SMART BATTERY PROTECTION

✓ Smart Low-Voltage Cutoff

When battery voltage drops below 11.8V, the switch automatically disconnects power after approximately 120 seconds to help prevent further battery drain.

✓ Real-Time LED Voltage Display

Check the current battery voltage directly on the built-in LED display before driving, parking or storing your vehicle.

✓ Remote Control Up to 100m

Disconnect or reconnect battery power from a distance without opening the hood or manually removing the battery terminal.

✓ Driving Safety Protection

When voltage rises above 13.2V, the remote-control function is disabled to help prevent accidental remote shutoff while the vehicle is operating.

✓ No Cutting or Splicing Required

The negative-terminal installation design helps preserve the vehicle’s original wiring and makes removal easier when needed.

✓ Durable Everyday Construction

Built with a pure copper conductive terminal and an IP54-rated housing for reliable everyday vehicle use.

IDEAL FOR PARKED AND STORED VEHICLES

A practical battery-management solution for vehicles and equipment that may remain unused for extended periods.

✓ Cars
✓ Pickup Trucks
✓ RVs and Travel Trailers
✓ Boats
✓ Motorcycles
✓ ATVs and UTVs
✓ Weekend Vehicles
✓ Seasonal Vehicles
✓ Stored Vehicles
✓ Project Cars

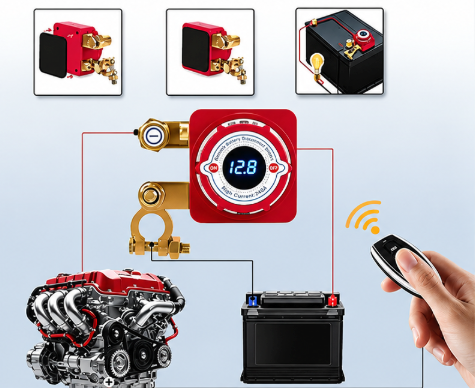

SIMPLE INSTALLATION IN 3 STEPS

STEP 01 — Install on the Negative Terminal

Turn off the vehicle and connect the switch to the battery’s negative terminal. Confirm the battery terminal size before installation.

STEP 02 — Check the Voltage Display

View the current battery voltage on the LED display and confirm that the device has started correctly.

STEP 03 — Control Power When Needed

Use the remote control or manual switch to disconnect and reconnect battery power while the vehicle is parked or stored.

PRODUCT SPECIFICATIONS

Product Type: Smart Remote Battery Disconnect Switch

Operating Voltage: 12V

Installation Position: Battery Negative Terminal

Low-Voltage Cutoff: Below 11.8V

Cutoff Delay: Approximately 120 Seconds

Remote Safety Lockout: Above 13.2V

Remote Control Range: Up to 100m in Open Conditions

Housing Rating: IP54

Conductive Material: Pure Copper Terminal

Compatible Terminal Sizes: 9–13mm / 15–17mm

Recommended Battery Current: Below 240A

Recommended Engine Displacement: Below 4.0L

Control Methods: Remote Control and Manual Switch

Voltage Display: Built-In LED Display

PACKAGE INCLUDES

• 1 × Smart Remote Battery Disconnect Switch Kit
• Remote Control Unit(s)
• Negative-Terminal Connection Hardware
• Installation Accessories
• User Manual

Package contents may vary depending on the selected option.

❕IMPORTANT COMPATIBILITY AND SAFETY INFORMATION

• Designed for compatible 12V battery systems only.
• Confirm battery current, terminal dimensions and vehicle compatibility before ordering.
• Install only on the battery’s negative terminal unless otherwise instructed by the manufacturer.
• Turn off the ignition and all electrical equipment before installation.
• Do not intentionally disconnect battery power while the engine is running.
• Some vehicles may lose saved clock, radio, window or electronic settings after complete battery disconnection.
• Follow the supplied installation manual.
• Consult a qualified automotive technician if you are unsure about installation or compatibility.
